Missouri River Raw Water Intake Structure Design

Missouri American Water Company

The design of a 130 million gallon per day raw water intake structure, including a reinforced concrete structure in the Missouri River, divided into three pump cells.

Overview

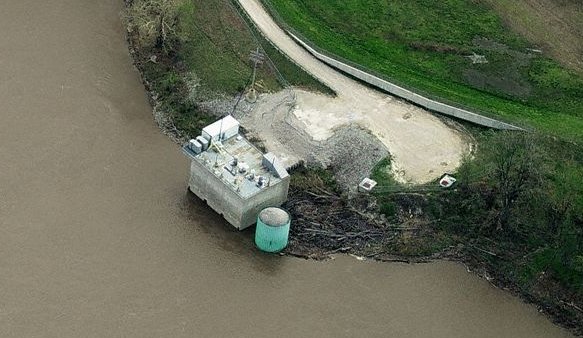

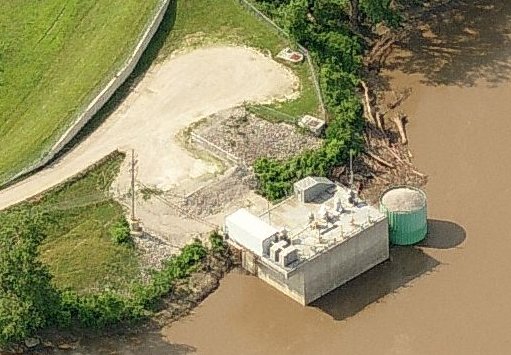

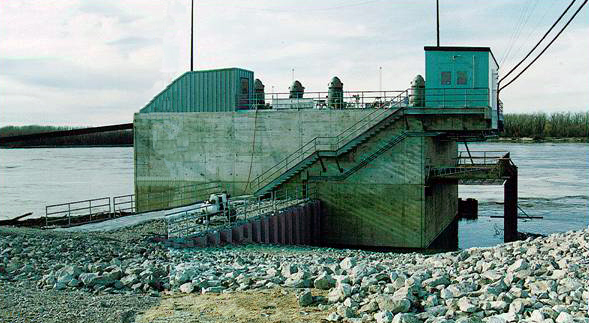

Horner & Shifrin designed a 130 million gallon per day raw water intake, including a 65 ft by 50 ft by 63 ft deep reinforced concrete structure in the Missouri River, divided into three pump cells. As part of the design effort, two physical models were constructed and run by the Iowa Institute of Hydraulic Research; one 1:5 scale model of the pump cell for hydraulic tuning, and one 1:20 scale model of the entire structure to design vanes to control sediment buildup.

Details

Project Components

Market

Utilities

Site Size

130 million gallon/day

Location

St. Louis, Missouri

Year Completed

2015
