Route 61 over Cuivre River

MoDOT, Bridge Division

Horner & Shifrin completed a bridge evaluation for the Cuivre River crossing.

Overview

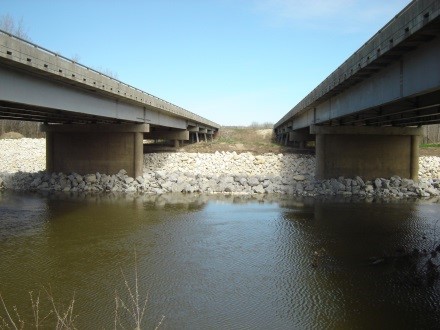

Horner & Shifrin completed a hydraulic and scour study to determine options for improving the Rte. 61 over Cuivre River crossing which had scour issues that threatened the integrity of the structures. A consultation with MoDOT on a geomorphic study was also completed. Evaluation of stream meander, guide banks and spurs was included. Several options, including rehabilitation and new structures were evaluated and preliminary plans for each completed to the level necessary to provide cost estimates. The final solution was to place large quarry rock at the threatened bents until funds can be secured to replace the structures.

Services

Project Scope

Market

Government

Location

Troy, Missouri

Year Completed

2011
