3D Warehouse Building Scan

Delta 3 Engineering

Overview

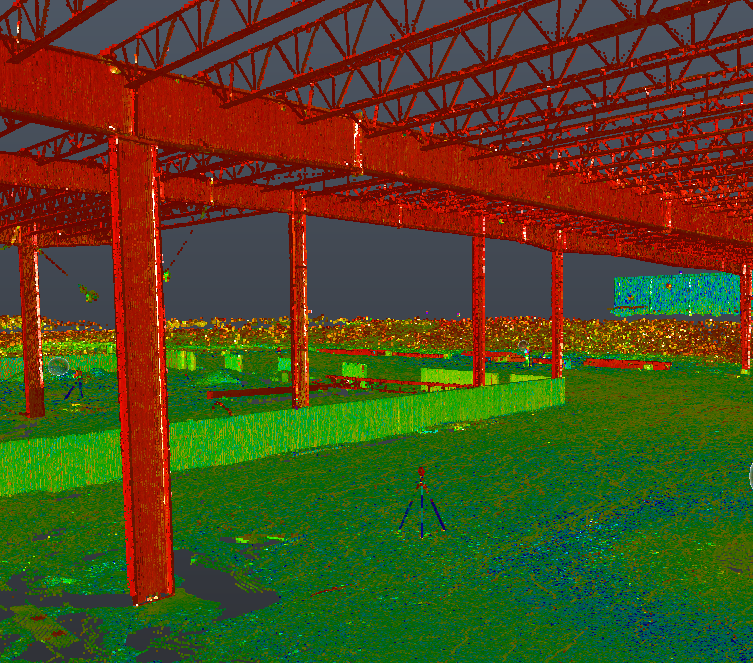

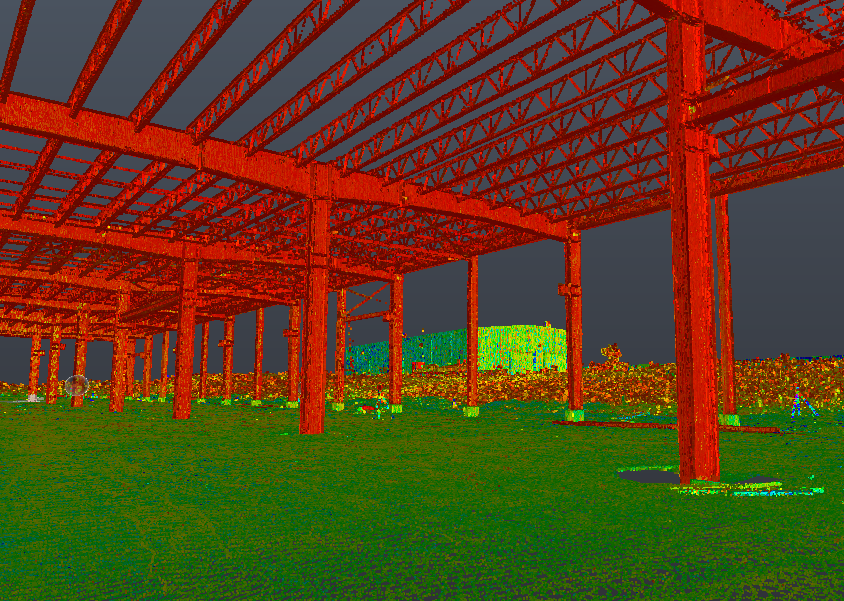

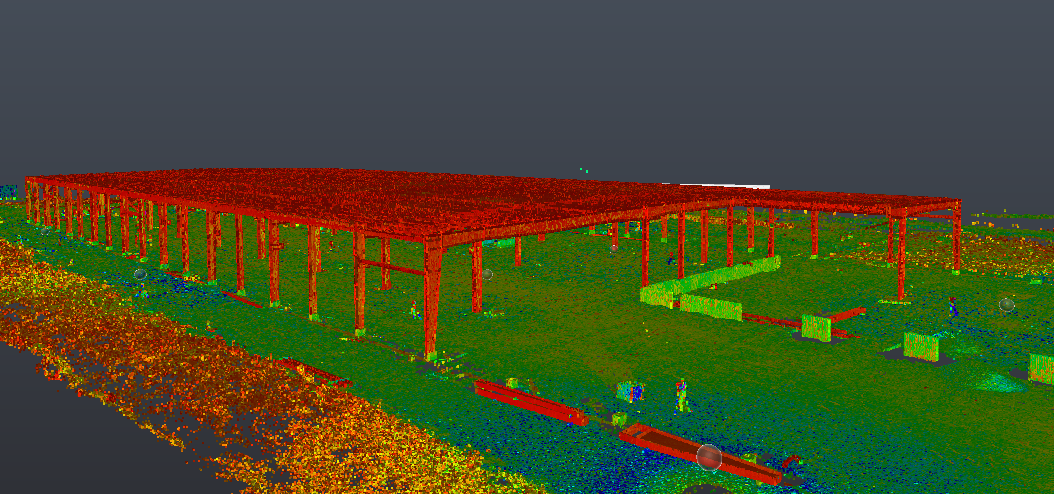

Horner & Shifrin was contacted by Delta 3 Engineering to complete a 3D scan of 183,000 sq. ft. building in Marion, Iowa where foundation had been completed and steel support structures erected. Our scanning services were requested to capture as-built conditions for Delta 3 in order for their engineers to check plumbness of the support beams and monitor any constructions flaws. Our survey crews were able to deploy our Leica 3D scanner to create a 3D point cloud of the building and foundation. Site control was checked and utilized to tie down the 3D scan. Our crew was able to complete the scan and control survey, post process the 3D scan data, and export it to CAD well under the time frame requested by Delta 3.

Services

Project Scope

Market

Private

Site Size

183,000 sq. ft

Location

Marion, Iowa

Year Completed

2020
