IL 1 / US 45 Bridges

IDOT, Region 4, District 7

Horner & Shifrin designed three bridge replacements for IDOT, District 7.

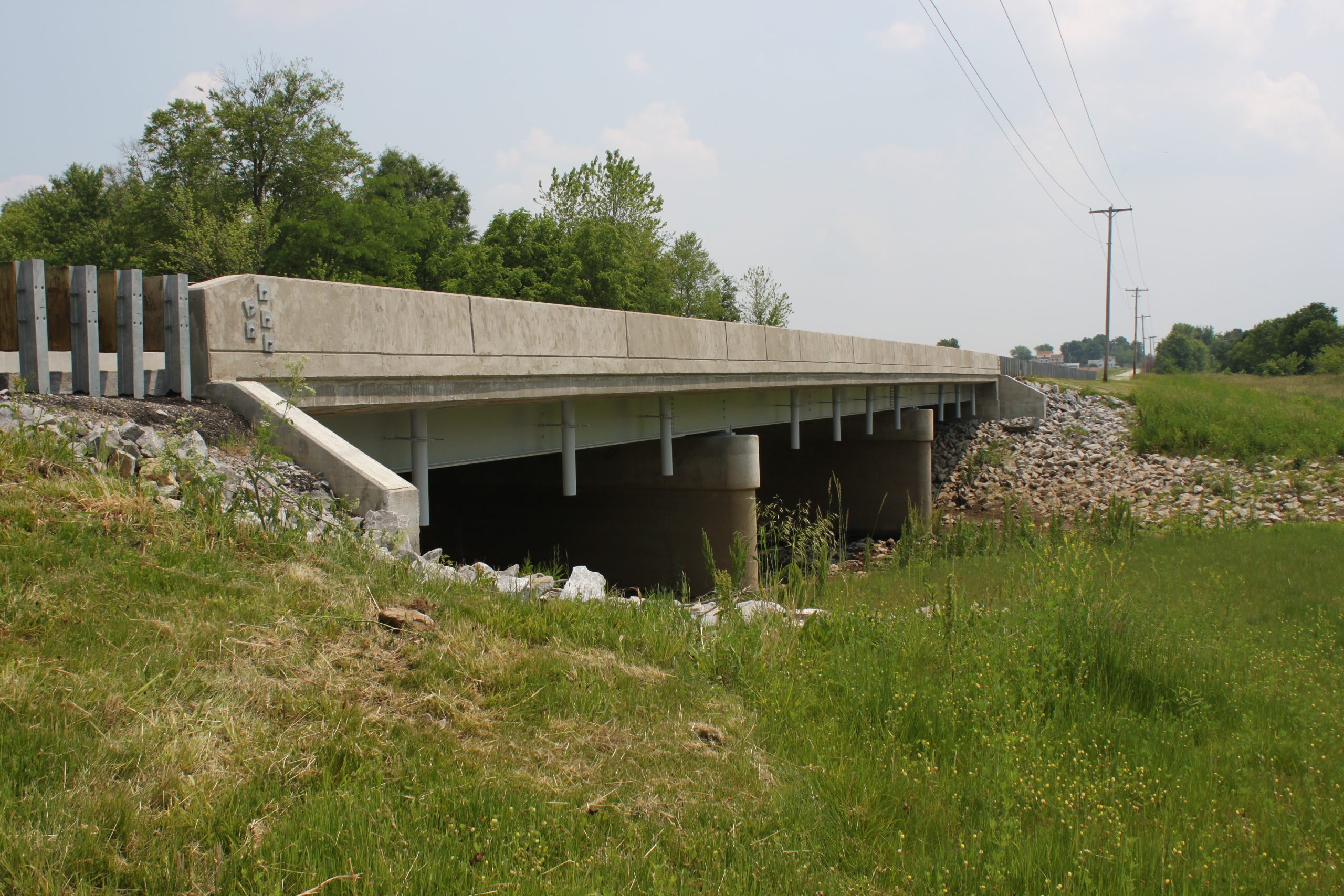

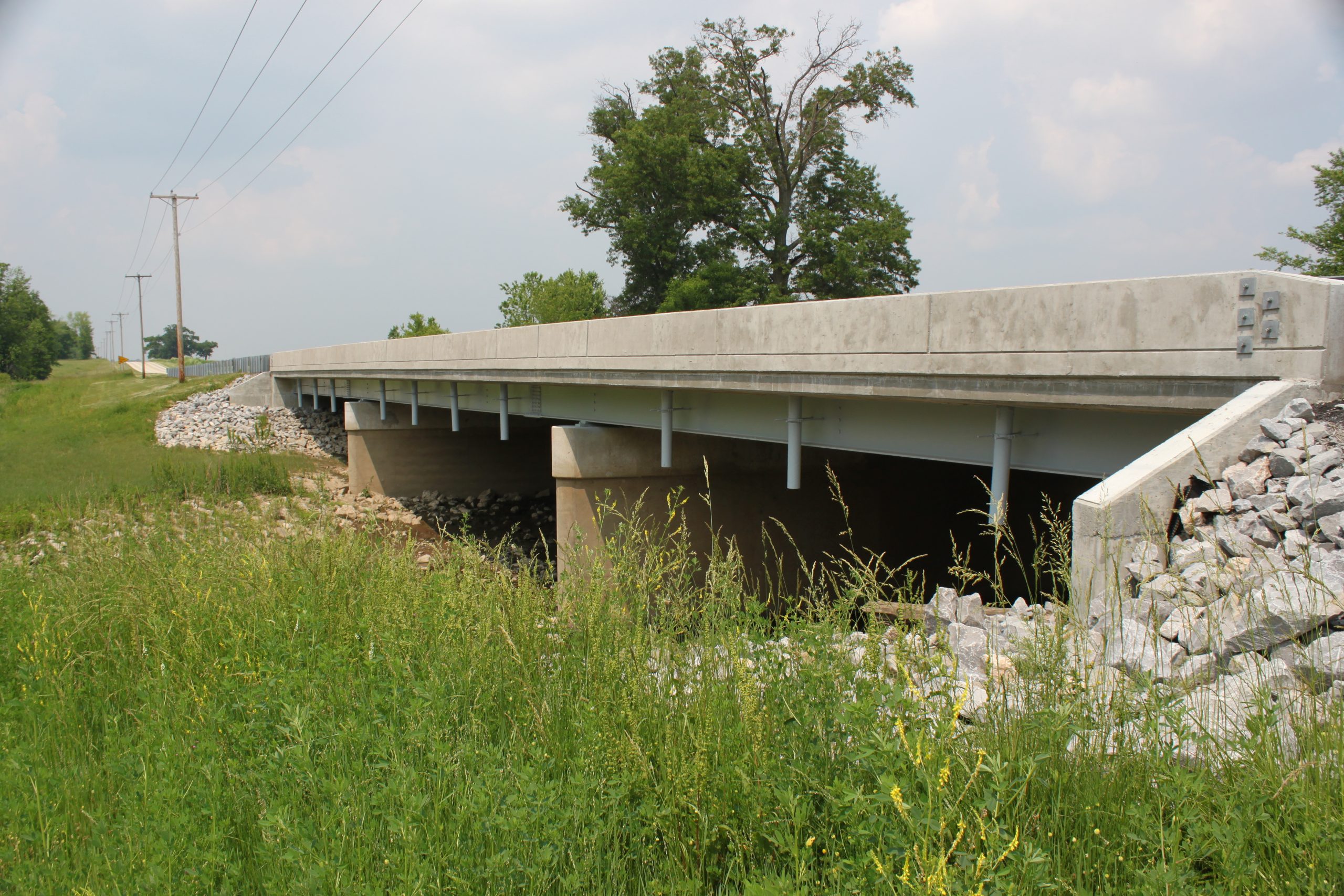

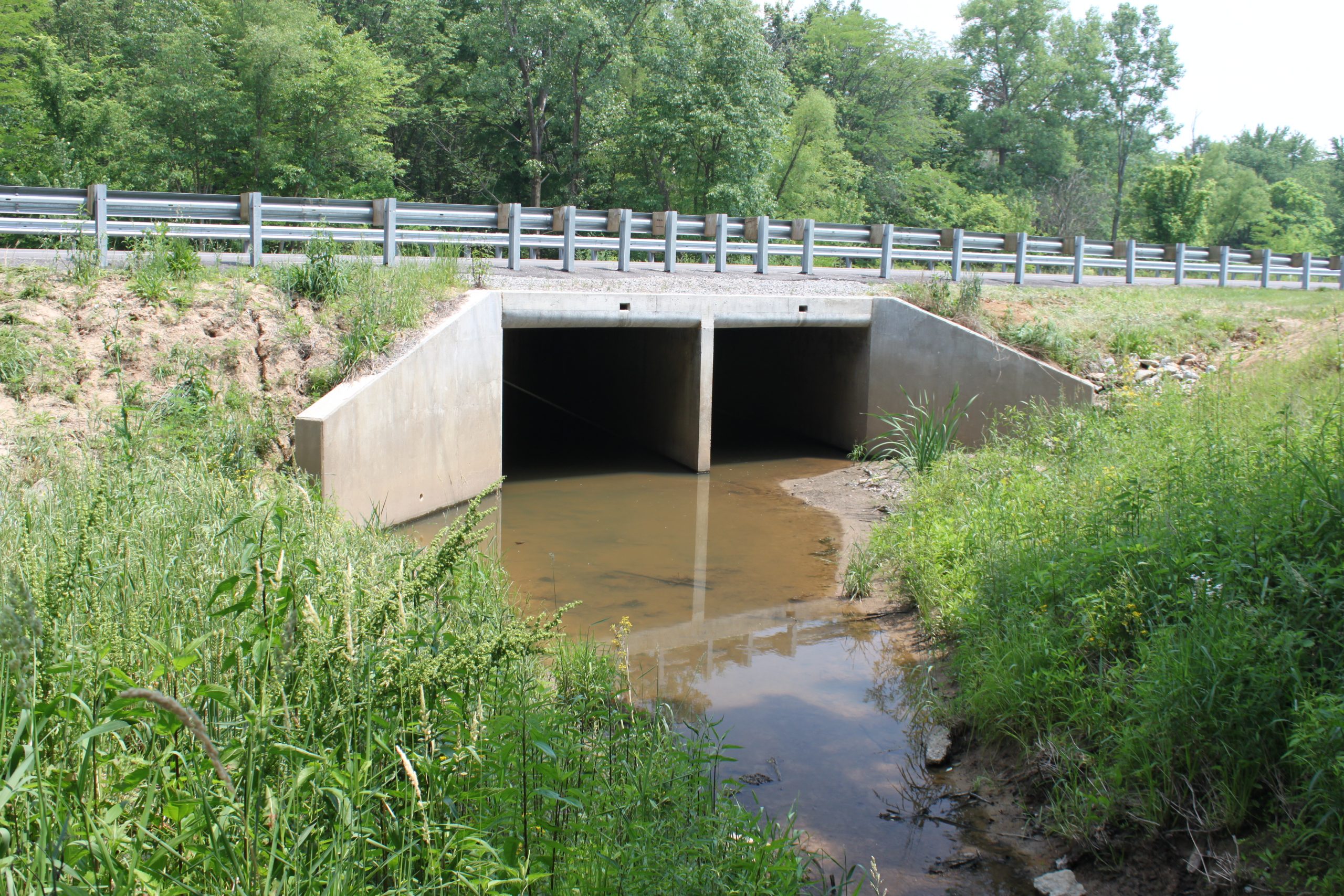

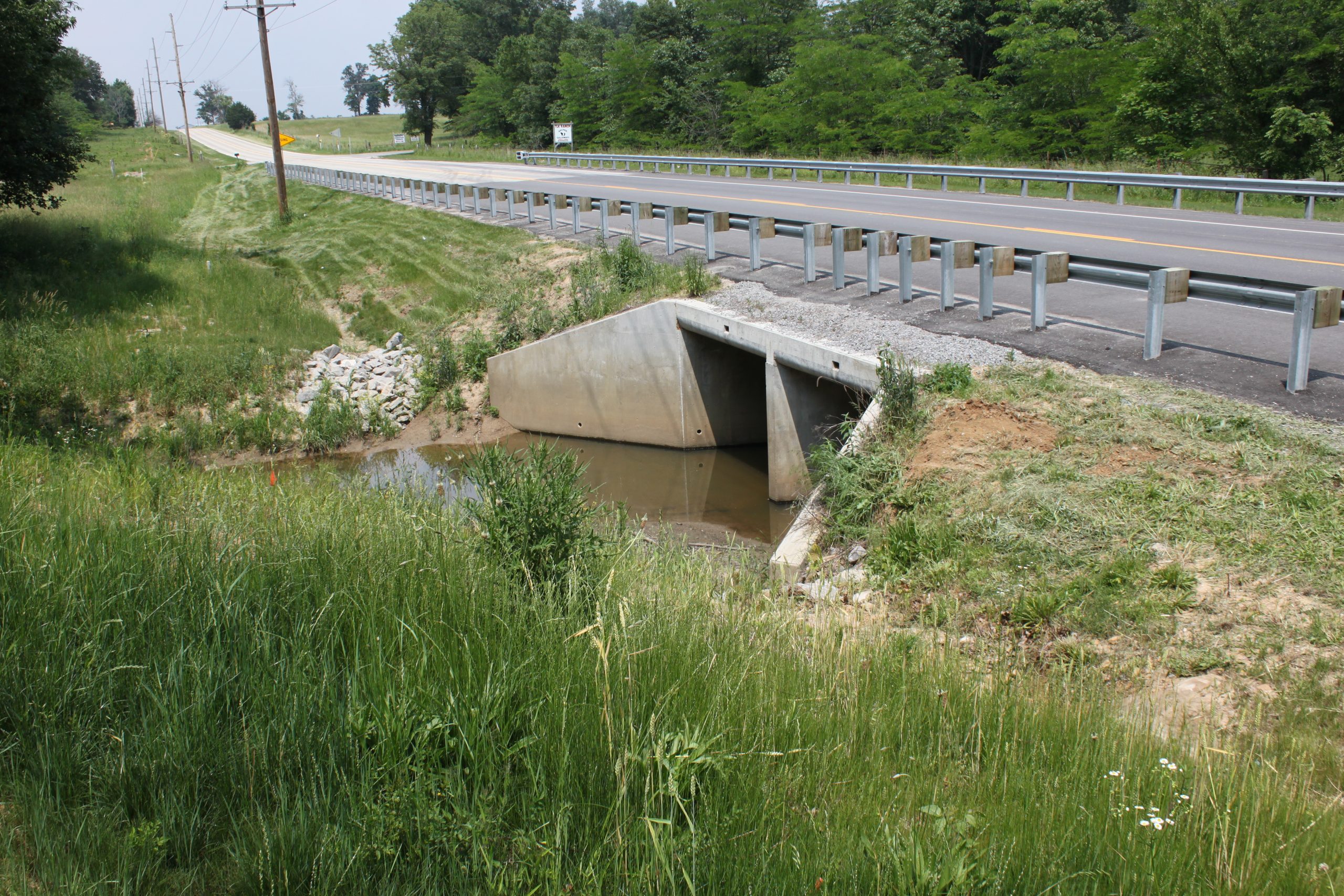

Horner & Shfirin developed Phase II construction plans for the replacement of three highway/stream structures:  US 45 over Raccoon Creek, US 45 over Endsley Creek, and US 45 over Branch of Deer Creek.  US 45 over Racoon Creek is a 3 span steel superstructure with ingetral abutments and pile bent piers.  US 45 over Endsley Creek is a 17” adjacent PPC Deck beam replacement superstructure replacement. US 45 over branch of Deer Creek is a new dual cell box culvert.

Horner & Shifrin was responsible for Phase II design of the two bridges and box culvert.  All three structures required staged construction to maintain traffic and the existing alignment.


Project Scope





Rinard, Illinois

Year Completed
